Tesla has officially expanded Vehicle-to-Load (V2L) support to the Model Y Premium in the United States, but there is an important catch – not every Model Y Premium has the hardware needed to use it.
As we have previously reported, V2L depends on the vehicle having Tesla’s newer Power Conversion System, known as PCS2. If your Model Y Premium has PCS2, it should have the hardware necessary for V2L. If it has the older PCS1, it does not.
Fortunately, figuring out which one you have is relatively easy.
The good news is that Tesla has also developed a PCS1-to-PCS2 Lite retrofit procedure, meaning an upgrade is technically possible, although the amount of work involved suggests it would be an expensive one, and its unclear if this PCS2 Lite version enables V2L.
How to Check Your Model Y for PCS2

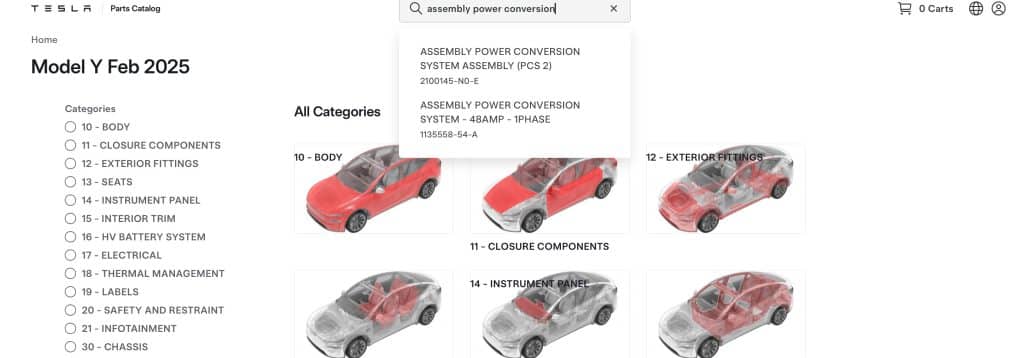

The most reliable method is through Tesla’s Parts Catalog. Sign in with your Tesla account, enter your VIN, and search for “assembly power conversion.”
You should see entries for the vehicle’s Power Conversion System. Look for the one marked “Original VIN Part.” That identifies the PCS installed in your Model Y when it was built.
The newer unit is listed as “ASSEMBLY POWER CONVERSION SYSTEM ASSEMBLY (PCS 2),” with part number 2100145-N0-E. The older system is listed as “ASSEMBLY POWER CONVERSION SYSTEM – 48AMP – 1PHASE,” with part number 1135558-54-A.

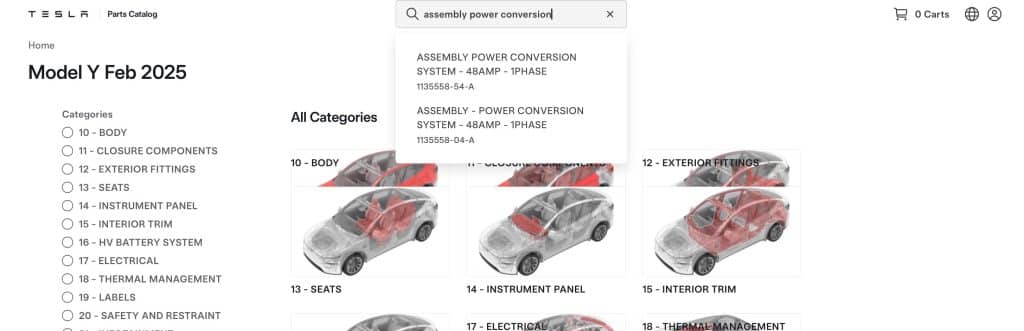

Unfortunately for Canadian Model Y Premium owners, it appears as though they are also out of luck, just like Model Y Performance owners. Accessing the Parts Catalog in Canada shows no PCS 2 at all.
There is also another way that is easier, but that is somewhat less reliable. Open the Tesla Outlet Adapter page in the Tesla app while signed into your account. Tesla should automatically tell you whether the adapter is compatible with your vehicle. However, the compatibility checker has not always been accurate in the past, making the Parts Catalog the better option for now.
Can PCS1 Model Ys Be Retrofitted?
Interestingly, the answer appears to be yes – at least technically. Tesla’s Service Manual now contains a procedure specifically titled “PCS1 to PCS2 Lite (Retrofit).” The procedure was released on July 22 and updated on August 5, although Tesla clearly labels it as a draft and warns that some cautions may still be missing.
This isn’t a simple matter of removing PCS1 and plugging in PCS2. Tesla’s procedure runs to 344 steps and involves accessing the high-voltage battery, draining and refilling coolant, modifying wiring, replacing harnesses and coolant lines, and performing numerous high-voltage electrical checks.
Once everything is back together, the vehicle requires software configuration through Tesla’s Toolbox and ODIN routines, including a CAN redeploy and coolant-system procedures.
In other words, a retrofit is possible, but don’t expect Tesla to offer a cheap upgrade anytime soon. Parts for the conversion are estimated at roughly US$1,750 before labour, and given the amount of disassembly and specialized high-voltage work involved, the final bill could be considerably higher.
More importantly, Tesla does not currently offer the PCS1-to-PCS2 conversion as a customer V2L upgrade. The existence of the procedure does show that the hardware can be changed, however, leaving the door open for Tesla to potentially offer an official retrofit in the future.
